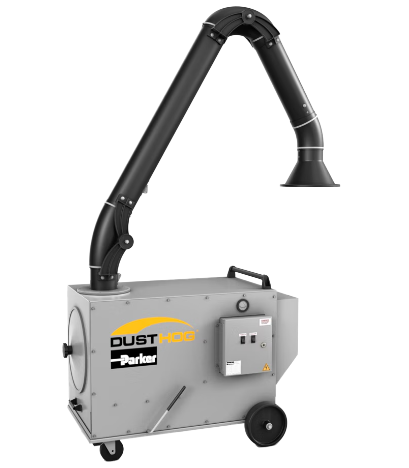

Parker DustHog VP-1500 Portable Dust Collector – 1500 CFM Source Capture Filtration System with Optional 8" XA Arm
The Parker VP-1500 Portable Filtration Unit is a high-capacity, self-contained source capture system designed for intermittent use in demanding industrial environments. Delivering up to 1,500 CFM of airflow, the VP-1500 provides powerful dust, smoke, and fume extraction right at the point of generation.
Outfitted with a connection for an 8-inch XA extraction arm (sold separately in 7', 10', or 12' lengths), this system allows for flexible local exhaust ventilation (LEV), capturing harmful contaminants before they reach a worker’s breathing zone or disperse into the workspace.
Ideal for welding, cutting, soldering, and powder-handling applications, the VP-1500 features a low-profile, heavy-duty cabinet with integrated controls, a filter pressure gauge, and a manual or automatic pulse filter cleaning system using compressed air. With HEPA and carbon after-filter compatibility, this unit offers a scalable and OSHA-compliant dust control solution.
Key Advantages
-
Delivers 1,500 CFM of localized filtration
-
Supports 8" XA extraction arms in multiple lengths (sold separately)
-
Fully portable with 5” heavy-duty casters and 15' industrial-grade power cord
-
Ideal for applications where fixed ductwork or hoods are impractical
-
Powder-coated mild steel construction for durability in harsh environments
-
HEPA and carbon filters available for advanced contaminant capture
-
Integrated damper in extraction arm for flow adjustment
Technical Specifications
| Attribute | Details |
|---|---|
| Air Flow Rate | 1500 CFM |
| Weight | 502 lb |
| Application | Dust, Fume, Smoke |
| Equipment Type | Mobile Media Filter Unit |
| Filter Area | 283.0 ft² / 26.0 m² |
| Filter Included | No |
| Inlet Port Size | For 8" XA Extraction Arm |
| Motor Power Output Rating | 3 HP |
| Current | 8.1 amp / 7.6 amp / 3.8 amp |
| Sound Level | 81 dBA |
| Air Consumption | 1.3 SCFM |
| Depth | 52 inch |
| Width | 30 inch |
| Height | 39 inch |
| Paint Type | Powder Coated |
| Body Material | Mild Steel |
| Brand | DustHog |
| Options | Sold separately: Extraction Arm, Filter Media, After Filter |
| Product Series | VP 1500 |
| Filter Material | Media |
| Color | HOG Gray |
Common Applications
-
Welding and cutting fume extraction
-
Powder handling and bulk material control
-
Soldering stations and lab work
-
Temporary workstations needing mobile LEV
-
OSHA-regulated indoor environments requiring point-of-use control
Position. Plug. Capture. The VP-1500 is the ultimate portable filtration system, giving your facility clean, compliant air where and when you need it. Ideal for facilities that demand flexibility, mobility, and reliability.
Note: Extraction arm, filter cartridges, after-filters, and accessories sold separately.
